In the world of product development, time is the scarcest resource. Every time an engineer sends drawings to machine parts suppliers, the subsequent waiting period is often filled with uncertainty: When will my parts arrive? Will the quality meet expectations? What problems might arise during the process?
As a supplier specializing in precision machining and rapid prototyping, Brightstar Prototype CNC Co., Ltd undertakes more than 10,000 custom part projects annually. In our experience, many engineers seeking a reliable CNC machining partner or insights into precision machining processes—those who keep their projects running smoothly—share one key trait: they understand the full custom parts production process and know what to expect at every stage.
This article breaks down the eight key steps of custom CNC machining—from drawing to final delivery—covering the complete workflow from prototyping to production. It also explains precision CNC machining processes and helps you approach your next CNC parts procurement with confidence.
![]()
![]()
Step 1: Drawing Preparation and Technical Clarification

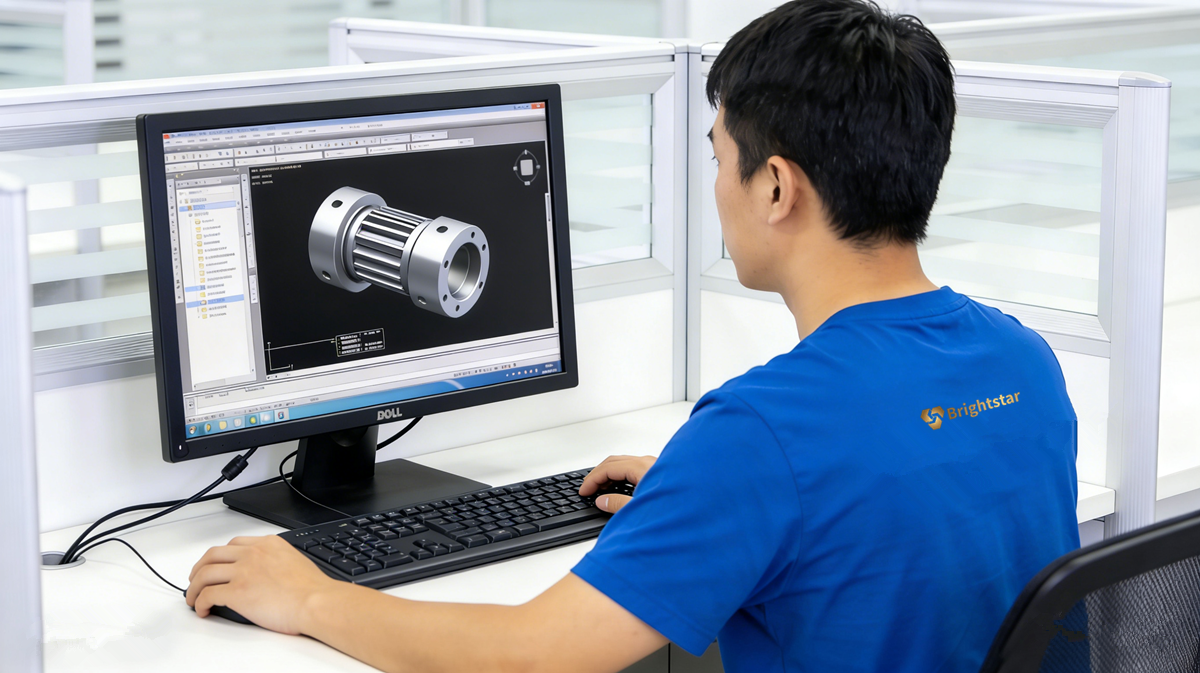

Everything begins with design files. According to industry experience, 80% of machining problems originate in the design phase. A complete drawing package should include: a 3D CAD model, typically submitted in STEP or IGS format, used to generate toolpaths; and 2D engineering drawings, clearly marked tolerances, chamfers, threads, and other critical features.
Regarding tolerances, there's a golden rule: unless specifically noted, default to medium tolerances. But positions truly requiring precision fit must be clearly marked on drawings. For wall thickness, metal parts should generally be no less than 1.0mm, plastic parts no less than 1.2mm, depending on the material and manufacturing process.
Step 2: Design for Manufacturing and Engineering Feedback
This is the key circle where supplier professionalism shines. DFM analysis aims to identify potential problems before production begins. Experienced engineers check: Can tools reach all machining areas? Are there thin walls that might cause deformation? Does material selection match design functionality?
Research shows that comprehensive DFM processes can predict over 70% of potential machining issues before production starts. For example, a motor housing originally designed with 0.5mm wall thickness was flagged in DFM analysis as potentially failing due to vibration; after redesign to 1.2mm, the problem was completely resolved.
Step 3: Material Selection and Procurement
Material selection is a critical part of the custom CNC machining process, as it directly impacts part performance, manufacturing cost, and overall lead time. Choosing the wrong material can result in unnecessary delays or even part failure during testing.
Common materials used in CNC machining include aluminum alloys, stainless steel, titanium, brass, and engineering plastics such as ABS, PC, POM, and PEEK.
For functional prototypes, it is highly recommended to use production-grade materials to ensure accurate testing results. In some cases, sourcing special materials—such as titanium bars or non-standard plates—may require additional procurement time, which should be considered early in the project timeline.
Customer benefit:
Selecting the right material early helps reduce risk, control costs, and avoid unexpected delays.
Step 4: Programming and Toolpath Planning
Once materials are confirmed, engineers write CNC programs and plan toolpaths. This includes three main stages: roughing, quickly removing most material; semi-finishing, approaching final dimensions; and finishing, achieving final tolerance and surface quality requirements.
For high-precision parts, four or more repositioning cycles may be needed to achieve ±0.01mm tolerances. Complex geometries may require five-axis machining, completing multiple faces in one setup, improving both accuracy and reducing time.

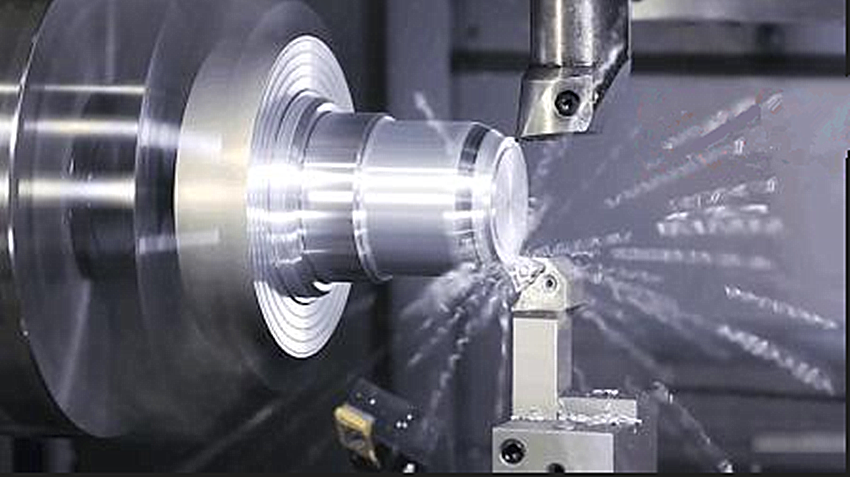

Step 5: Machining Process and In-Process Control
When programs are uploaded to machines and materials secured in fixtures, actual machining begins. Modern CNC machining centers are equipped with various sensors and monitoring systems capable of real-time anomaly detection. A recent study shows that machining platforms integrating automatic optical inspection and AI can achieve 91% defect detection accuracy.
At Brightstar, we offer a full range of CNC machining capabilities to support both prototyping and production needs, including 3-axis, 4-axis, and 5-axis machining, as well as precision milling and turning, ensuring high precision, consistency, and reliable performance across complex projects. We employ process control methods, conducting intermediate inspections after key process to ensure timely detection and correction before problems escalate. This not only guarantees quality but also avoids waste in downstream processes.
![]()
Step 6: Surface Finishing and Post-Processing

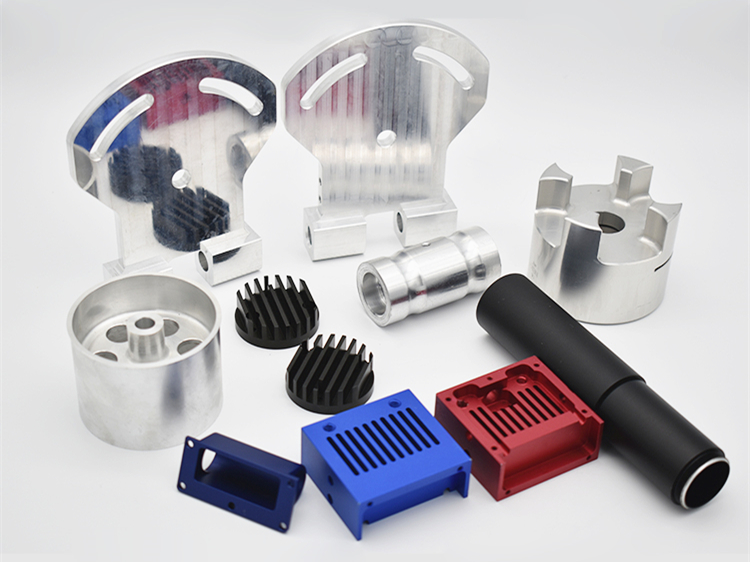

After machining, parts typically require surface finishing to achieve final requirements. Common options include: anodizing for aluminum parts, enhancing corrosion resistance and aesthetics; sandblasting for uniform matte surfaces; polishing for mirror finishes; electroplating for zinc, nickel, or chrome plating.
When selecting surface finishes, consider the balance between functional requirements and cost. For example, transparent housings using PC material offer better impact resistance than PMMA, but require higher machining precision.
Step 7: Quality Inspection and Documentation Delivery ensure quality

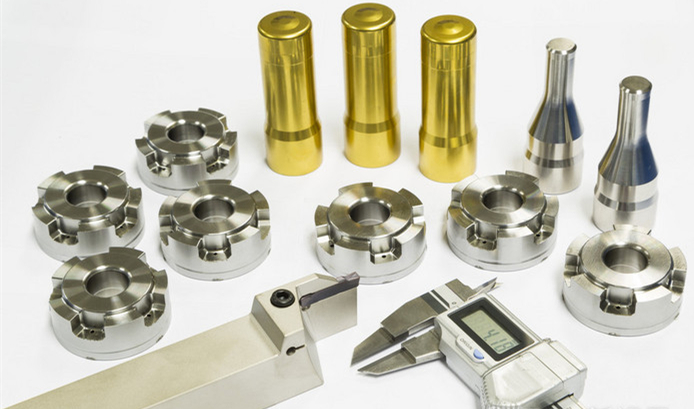

This is the circle proving parts meet requirements. Complete quality documentation should include: First Article Inspection reports confirming all dimensions of the first piece meet drawings; material certificates verifying material grades and batches; final inspection reports recording critical dimension measurements.
High-demand industries like aerospace or medical devices may also require FAI reports and Certificates of Conformance. Reliable suppliers should be able to provide this documentation.
![]()
Step 8: Packaging and Logistics Arrangement
Last but equally important, parts need safe delivery to your hands. Precision parts require appropriate packaging to prevent碰撞 and scratches during transport. Parts with surface treatments may need additional protective layers.
Logistics planning is equally important. Seasonal factors, such as rainy periods, can impact delivery timelines, so preparing contingency plans in advance helps prevent unexpected delays.
Case Study: The Miracle of 72 Hours from Drawing to Parts
A European client from Germany needed an assemblable prototype within three days for an investor meeting. Normally, such urgent requirements are difficult to meet. But through tightly link processes: completing DFM analysis and confirmation within 2 hours of receiving drawings, programming within 4 hours, and continuous 24-hour machining, we achieved the complete process from drawing to parts within 72 hours, ensuring the client's presentation proceeded smoothly and save time.
![]()
![]()
Frequently Asked Questions
Q: What is the minimum order quantity for custom parts?
A: In the rapid prototyping stage, we accept orders starting from 1 piece, supporting seamless transition from prototype to small-batch production.
Q: How do you ensure machined parts meet drawing requirements?
A: We implement strict three-stage inspection: first-piece inspection, in-process inspection, and final inspection, providing complete inspection reports.
Q: How are design changes handled?
A: Before machining starts, design changes can be incorporated into program adjustments at any time. Once machining begins, changes may incur additional costs and time.
Q: What file formats do you accept?
A: Accepted file formats: STEP, IGES, SLDPRT, CATPart, PRT, DWG, DXF. STEP/IGES are recommended for best compatibility.
Q: What is your typical production lead time?
A: Our standard lead time varies depending on material, order quantity, and part complexity. Typically, it is 7–15 working days for standard parts, 15–25 working days for small-batch production, and 30–45 working days for larger batch orders.
Custom parts procurement shouldn't be a black box. Brightstar Prototype CNC Co., Ltd offers you a completely transparent process experience. Upload your drawings now, and our engineering team will complete DFM analysis and provide detailed quotes within 24 hours. You'll witness firsthand how professional processes transform your design concepts into precision parts.
![]()
